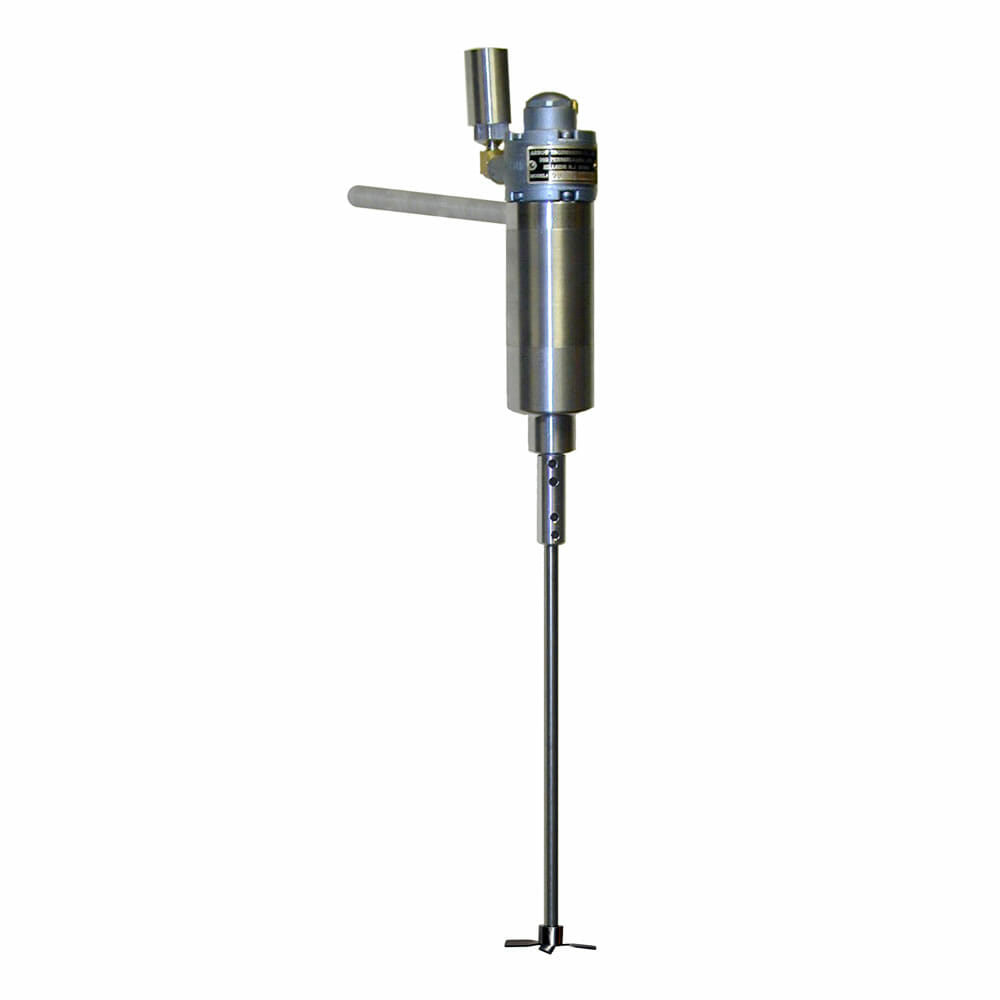

Model G-G Air Mixer

The Model G-G Air Mixer from Arrow Mixing Products is a versatile and robust solution for small-batch mixing applications. Designed with efficiency and durability in mind, this heavy-duty mixer is ideal for industries requiring precision and reliability. Whether you’re working with chemicals, paints, or other fluids, the Model G-G delivers consistent performance tailored to your needs.

Key Features and Specifications

The Model G-G Air Mixer is built with top-quality materials and components to ensure long-lasting performance. Standard features include:

• Propeller and Shaft: 3/8″ diameter x 12″ S-316-12 propeller shaft and a 2 1/2″ diameter propeller (#25A) for optimized mixing action.
• Coupling and Mounting Rod: Equipped with an aluminum coupling (CPL22-375) and a 9/16″ x 10″ mounting rod (#15) for secure and flexible installation.
• Additional Accessories: Comes with a 4-foot hose (#26) and muffler (#19) to reduce noise during operation.
• Performance Metrics:
  • Horsepower: 1/3
  • Batch size water: 20 liters
  • Max. RPM: 170
  • Gear Ratio: 49:1
  • Torque: 100 in-lbs*
  • Air input PSI: 30 to 60
  • Air consumption: 13 CFM*
  • Motor shaft diameter: 3/8″
  • Shipping weight: 7 lbs (3.2 kg)

*Torque values and air consumption measured at 80 PSI and motor speeds of 6,000 RPM and 2,000 RPM for Types 750 and 1500.

With these specifications, the Model G-G is perfectly suited for precision mixing while maintaining a lightweight and portable design.

Enhanced Control and Safety

Arrow Mixing Products prioritizes safety and control in all its designs. The Model G-G includes features like:

• Adjustable Air Input: Ensures precise control of mixing speed and torque based on your application’s requirements.
• Noise Reduction: The included muffler minimizes operational noise for a safer, more comfortable work environment.
• Secure Mounting: A sturdy aluminum coupling and mounting rod provide stability during use, reducing vibration and ensuring consistent performance.

These features make the Model G-G not only a high-performing mixer but also a reliable tool for safe operation.

Why Choose the Model G-G?

When you invest in the Model G-G Air Mixer, you’re choosing unmatched durability, efficiency, and ease of use. With its heavy-duty construction and versatile applications, this mixer is ideal for small-batch operations across a wide range of industries. Its lightweight design and compatibility with UPS shipping in the U.S. make it convenient and accessible for professionals nationwide.

Plus, with Arrow Mixing Products’ decades of expertise, you’ll have access to industry-leading support and guidance to ensure the Model G-G meets your specific needs.

Contact Arrow Mixing Products Today

Ready to elevate your mixing processes? Contact Arrow Mixing Products to learn more about the Model G-G Air Mixer or to place your order. Our team of experts is here to guide you in selecting the best air mixer for your application. Whether you have questions or need additional shipping options, we’re just a call or click away!

Shipping UPS in the United States only. Any other shipping should contact us.
