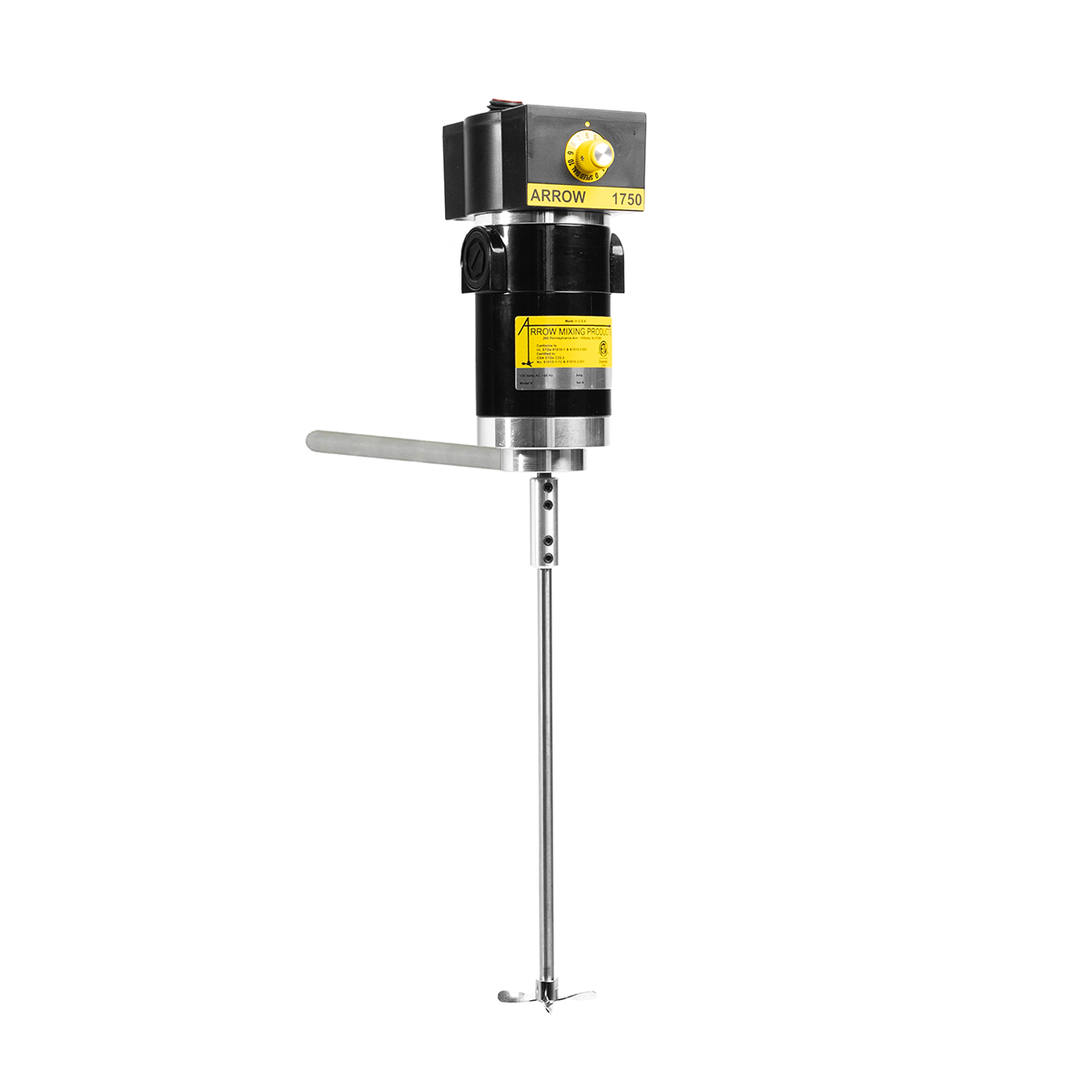

Model 1750

Arrow Model 1750 Industrial Electric Mixer from Arrow Mixing Products on Vimeo.

Specifications

The Model 1750 electric mixer comes standard with:
3/8″ dia x 12″ propeller shaft (S-316-12)
2 1/2″ dia propeller (#25A)
Aluminum Coupling (CPL22-375)
9/16″ dia x 10″ mounting rod (#15)
6ft Power cord with grounded plug (#POCO 120)

Horsepower: 1/14
Batch size water: 20 liter
Description: Medium Duty
Gear ratio: Direct
Max. rpm: 2,000
Torque: 2.43 in-lbs
Power: 120 VAC 60 Hz or 230 VAC 50 Hz
Consumption amp: 0.8
Motor shaft dia.: 3/8″
Motor dimensions: dimensional drawing of electric overhead stirrers available upon request
Shipping Weight: 10 lbs (4.5 kg)

Introducing the Model 1750 Electric Mixer, a standout offering from Arrow Mixing Products, designed for rigorous medium-duty applications. Renowned for its robust construction and exceptional efficiency, the Model 1750 is a critical resource for professionals seeking dependable and effective mixing capabilities.

Core Attributes and Details

The Model 1750 Electric Mixer is designed for medium-duty mixing applications, ideal for smaller batch sizes up to 20 liters. It is equipped with a 3/8″ diameter x 12″ propeller shaft and a 2 1/2″ diameter propeller, ensuring effective mixing capabilities. This mixer features a powerful motor with 1/14 horsepower that can achieve up to 2,000 RPM, delivering a torque of 2.43 in-lbs for your mixing needs. Key specifications include a choice between 120 VAC 60 Hz and 230 VAC 50 Hz power options, a low consumption amp of 0.8, and standard motor shaft dimensions. Its compact design is underscored by a total shipping weight of 10 lbs, making it both portable and easy to handle.

Operations and Safety

The Model 1750 comes standard with user-centric features that prioritize control and safety. An adjustable speed dial allows precise control over mixing speed, catering to various material requirements, while the integrated breaker switch ensures safe operation by preventing accidental start-ups. The mixer’s stainless steel blade is durable and designed for consistent performance. Mounting the device is straightforward thanks to its easy-to-install frame and robust mounting rod.

Why Choose the Model 1750?

Opt for the Model 1750 if your operations require a reliable, efficient, and safety-oriented mixer for medium-duty tasks. This model is particularly suited for applications in sectors such as; specialty chemical mixing, light industrial applications, and laboratory environments. Its enhanced RPM capacity and robust motor offer superior mixing speed and consistency, making it an invaluable tool for operations where precision and efficiency are critical. The Model 1750 represents a perfect balance of functionality and compact design, ensuring it fits seamlessly into various operational setups without compromising on performance.

Contact Arrow Mixing Products Today

Interested in learning more about how the Model 1750 Electric Mixer can transform your mixing processes? Contact Arrow Mixing Products today to discuss your specific needs with our experts. We’re ready to assist you in selecting the right mixing solution that aligns with your operational requirements. Reach out to us through our website or call us directly for personalized service and support.

Shipping UPS in the United States only. Any other shipping should contact us.

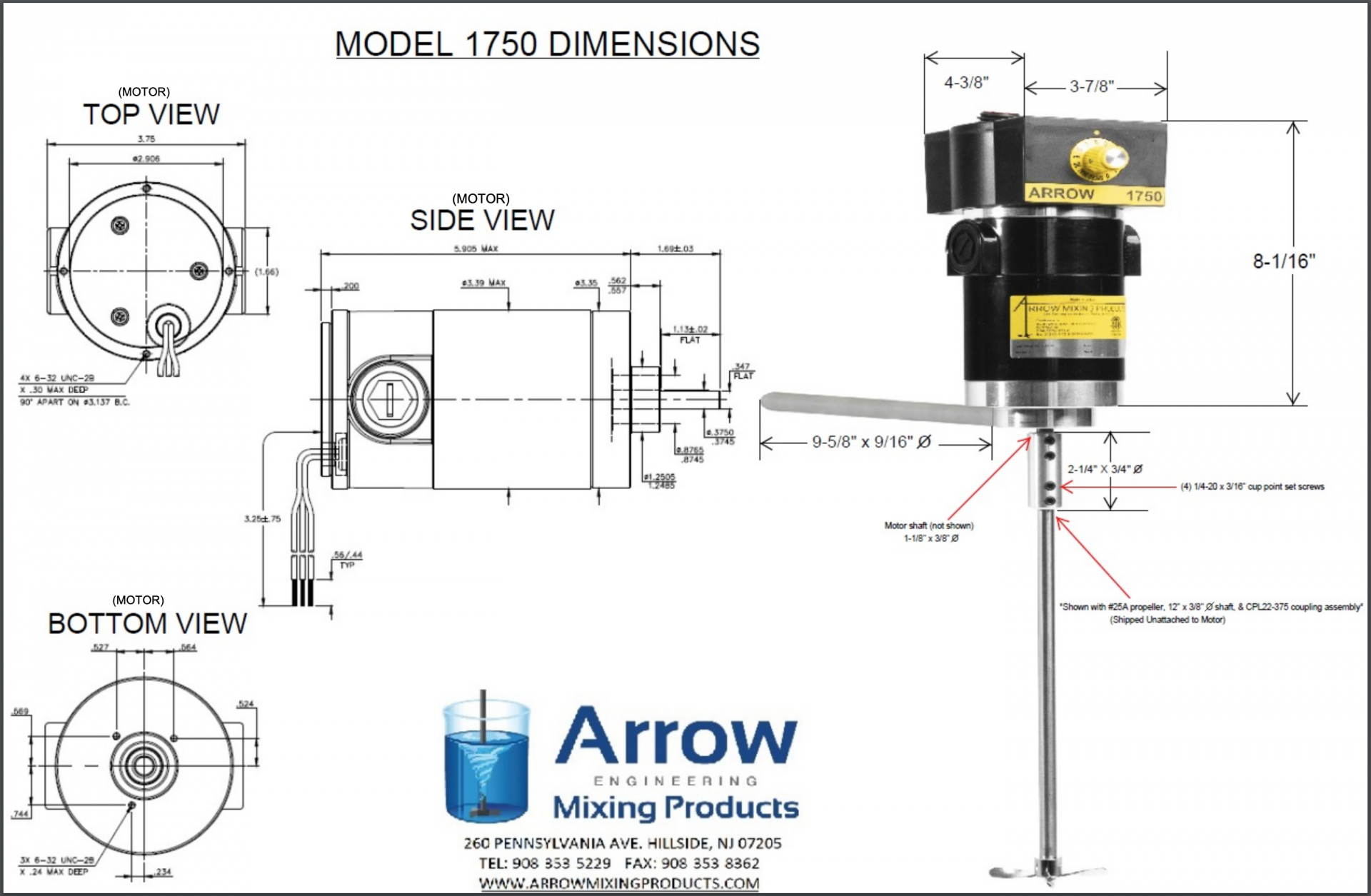

Model 1750 Dimensions
Download PDF
