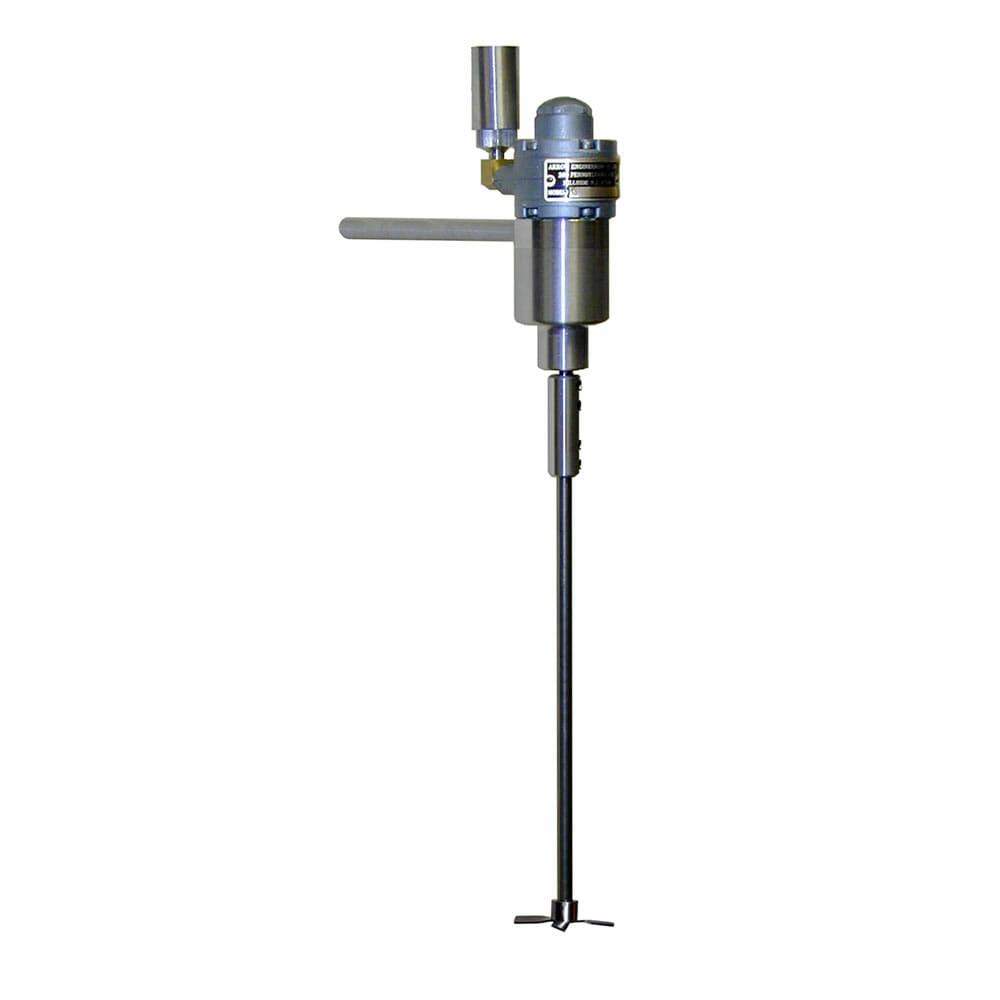

Model G Air Mixer

The Model G air mixer comes standard with:
3/8″ dia x 12″ propeller shaft (S-316-12)
2 1/2″ dia propeller (#25A)
Aluminum Coupling (CPL22-375)
9/16″ dia x 10″ mounting rod (#15)
4 foot hose (#26)
muffler (#19)

Horsepower: 1/3
Batch size water: 100 liters
Description: Medium/Heavy Duty Mixer
Gear ratio: 7 to 1
Max. rpm: 1,200
Torque:* 18 in-lbs
Air input psi: 30 to 80
Air consumption:* 13 cfm
Motor shaft dia.: 3/8″
Shipping Weight: 6 lbs (2.7 kg)

Use our industry experts’ guide to learn more about which air powered mixers are right for you and your processes. We offer electric and air driven lab mixers for a wide variety of products.

*Torque values and air consumption given at air pressure of 80 psi and motor speed 6,000 rpm and 2,000 rpm for Type 750 and Type 1500.

Shipping UPS in the United States only. Any other shipping should contact us.
